Multimeters are essential tools for anyone working with electronics, electrical systems, or industrial machinery. They measure various electrical properties like voltage, current, and resistance. Over time, different types of multimeters have been developed to suit specific applications across multiple industries.
Analog Multimeters
Overview:
Analog multimeters, often called VOMs (Volt-Ohm-Milliammeter), use a moving needle to display readings on a scale. They were the standard before digital technology became widespread.
Key Features:
- Needle display
- Measures voltage, current, and resistance
- Requires manual calibration
- No battery needed for voltage or current measurements
Uses:
Educational Purposes:
Great for learning basic electrical principles.
Low-Sensitivity Measurements:
Suitable for applications where a slight fluctuation in readings is acceptable.
Testing Batteries:
Useful for getting a quick, visual check of battery strength.
Relevant Fields:
- Electronics training institutes
- Hobbyist workshops
- Automotive repair shops

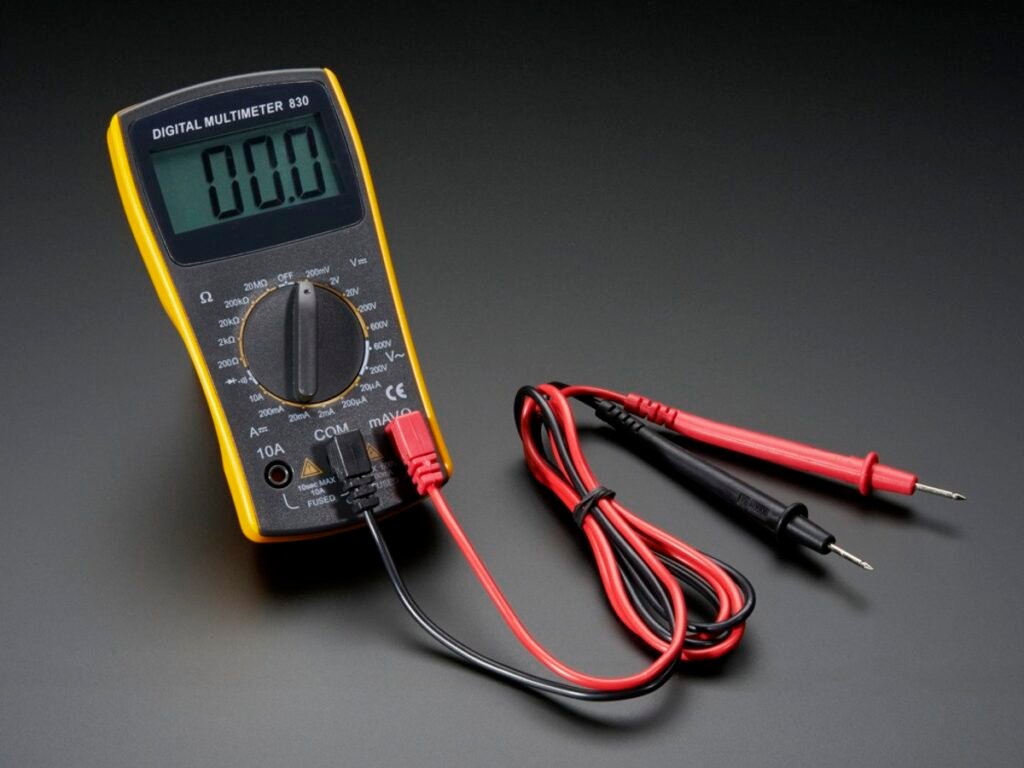

Digital Multimeters (DMMS)
Overview:
Digital Multimeters are the most used today. They display readings in numerical form on a digital display, and they are accurate and user-friendly.
Key Features:
- LCD or LED display
- High accuracy
- Automatic polarity detection
- Often include auto-ranging features
Uses:
General Electrical Work:
Measuring AC/DC voltage, current, and resistance.
Troubleshooting Electronic Devices:
Diagnosing faults in circuits.
Home Electrical Projects:
Checking outlets, switches, and household wiring.
Relevant Fields:
- Electrical engineering
- Household electrical maintenance
- Electronics repair and service centres
Clamp Meters
Overview:
A clamp meter combines a multimeter with a current sensor, enabling users to measure current without disconnecting the circuit.
Key Features:
- Measures high currents without direct contact
- The clamp jaws open to surround a conductor.
- Certain models can also measure voltage and resistance.
Uses:
Current Measurement:
Measuring the current in a wire without breaking the circuit.
Industrial Maintenance:
Verifying that machinery is functioning within safe current thresholds.
HVAC Applications:
Monitoring heating, ventilation, and air conditioning equipment.
Relevant Fields:
- Industrial plants
- Building maintenance
- HVAC system servicing
Auto-Ranging Multimeters
Overview:
An auto-ranging multimeter automatically selects the correct range for the quantity being measured, making it more user-friendly for beginners.
Key Features:
- Automatic range selection
- Reduces the need for manual range setting
- Fast and efficient measurements
Uses:
Quick Diagnostics:
Ideal for fast troubleshooting without worrying about setting ranges.
Home Inspections:
Checking wiring, switches, and circuit breakers.
Field Service:
Reduces the risk of incorrect measurements due to wrong range settings.
Relevant Fields:
- Home electrical services
- Field repair technicians
- General DIY electronics work
Fluke Multimeters
Overview:
Fluke is a brand rather than a type, but it deserves special mention. Known for rugged, high-quality meters, Fluke multimeters are widely trusted across industries.
Key Features:
- Extremely durable and accurate
- Offers advanced diagnostic capabilities
- Includes features like True RMS, data logging, and wireless connectivity
Uses:
Industrial Troubleshooting:
Identifying faults in heavy machinery.
Energy Audits:
Measuring efficiency and power consumption.
Complex Systems:
Advanced diagnostics in data centres and communication systems.
Relevant Fields:
- Heavy industry
- Power generation
- Advanced electronics testing
Automotive Multimeters
Overview:
Designed specifically for automotive systems, these multimeters offer additional features such as measuring RPM, temperature sensing, and alternator testing.
Key Features:
- Tests car batteries, alternators, and ignition systems
- Measures temperature and engine speed
- Specialised probes for automotive use
Uses:
Vehicle Diagnostics:
Checking battery voltage, starter performance, and wiring continuity.
Ignition System Testing:
Ensure that spark plugs and coils are functioning properly.
Relevant Fields:
- Auto repair shops
- Automotive engineering
- DIY car maintenance enthusiasts
Benchtop Multimeters
Overview:
Benchtop multimeters are large, stationary devices designed for laboratory use. They offer high precision and a wide range of advanced functions.
Key Features:
- Extremely accurate
- High input impedance
- Often connectable to computers for data analysis
Uses:
Laboratory Testing:
Precise measurement of electrical components.
Calibration:
Used in calibration labs for standard measurements.
Relevant Fields:
- Research and development labs
- Quality control departments
- University laboratories
Choosing the Right Multimeter for Your Needs
Application:
Are you working with high voltages, automotive systems, or sensitive electronics?
Accuracy:
Do you need a rough estimate or precise measurements?
Durability:
Will the multimeter be used in a rugged industrial setting or a controlled lab environment?
Special Features:
Do you require temperature readings, data logging, or wireless capabilities?
Conclusion:
From the basic analogue meters used in educational settings to the sophisticated Fluke multimeters trusted in industries, understanding the different types can help professionals and hobbyists alike select the right tool for the job. By choosing the appropriate multimeter from a professional company like MA Electrical Services , you ensure not only greater accuracy and efficiency but also safety and reliability in your work.
Whether you’re an automotive technician, an industrial electrician, or a home DIYer, there’s a multimeter tailored for your needs, making it an indispensable tool across virtually every technical field.
